| Incoterm: | FOB,CFR,CIF |
|---|---|
| Min. Order: | 10 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info

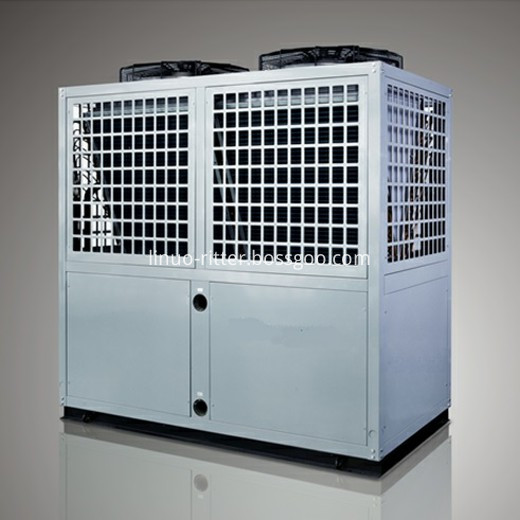

Model No.: LRIA/D-72 LRIA/D-95
Additional Info
Packaging: Packed in plywood box.
Productivity: 80000 sets anually
Brand: Linuo Ritter International
Transportation: Ocean
Place of Origin: China
Certificate: ISO9001,ISO14001,OHSAS18001
Port: Qingdao
Product Description
Imagine if one could retain the thermal performance advantages of modern [low ambient" air-source heat pumps, but switch to hydronics for the balance of system, and enjoy superior comfort, the potential for room-by-room zoning, design versatility, and the ability to handle several ancillary loads (other than space heating or cooling).
This all is possible using modern air-to-water heat pumps coupled to low-temperature hydronic distribution systems.
Advantage and benefits
Working air temperature range from -10℃ to 45℃.
Max. outlet water temperature up to 60℃
Multiple protections and electric heater backup function.
Automatic controlling system to ensure energy-saving of hot water heating system up to 75%.
Easy installation and maintainenance, stable and reliable system operation
| Model |
|
LRIA/D-72 | LRIA/D-95 |
| Power supply | V | 380V~415V/50Hz/3ph | |
| Heating capacity | KW | 70 | 88 |
| BTU | 238908 | 300341 | |
| Input power | KW | 16.75 | 21.05 |
| COP |
|
4.18 | 4.18 |
| Rated current | A | 33.1 | 41.6 |
| Fan motor power | W | 800 | 1150 |
| Fan motor quantity | Piece | 2 | 2 |
| Water flow | L/h | 15000 | 18900 |
| Hot water output | L/h | 1505 | 1892 |
| Water pressure drop | Kpa | ≤68 | ≤70 |
| Net weight | kg | 673 | 693 |
| Gross weight | kg | 777 | 808 |
| Noise | db | 75 | 75 |
| Pipe size (internal thread) | mm | 50 | 65 |
| Dimension | mm | 1850*1000*1950 | 2000*1100*2080 |
| Packing dimension | mm | 1940*1120*2180 | 2090*1200*2260 |
| Refrigerant | R407C | ||
| Condenser | Shell and tube heat exchanger | ||
| Expansion valve | Danfoss thermal expansion valve | ||
| Compressor | Copeland scroll compressor | ||
| Evaporator | Hydropilic Aluminium foil and internal thread copper pipe heat exchanger | ||
| Controller | LCD screen, multi-function | ||
| AC contactor | EATON | ||
| Classification of waterproof | IPX4 | ||
| Electric shock proof grade | I | ||
