| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 50 Set/Sets |
| Delivery Time: | 14-21 Days |
Basic Info
Model No.: 100L, 150L, 200L, 250L, 300L
Max. Capacity: Other
Structure: Compact Type
Pressure: Unpressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: CE, ISO9001, Other
Additional Info
Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment
Productivity: 500000 sets anually
Brand: Linuo Ritter International
Transportation: Ocean
Place of Origin: China
Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001
HS Code: 84191910
Port: Qingdao
Product Description
Solar water heater Feature
1.
Stable and reliable performance with high temperature hot water
2. Vacuum heat-collecting tubes at high
temperature
3. Aluminium stands anti-corrosion and wind-proof
4. Economical goods for families
| Series | 100L | 150L | 200L | 250L | 300L | ||
| Series number | Unit | HP385-100L | HP385-150L | HP385-200L | HP385-250L | HP385-300L | |
| General info | Tank capacity (TUV test) | L | 110 | 165 | 225 | 275 | 330 |
| Rated operating pressure | Mpa | 0.6 | |||||
| Gross surface area | m2 | 1.35 | 2.04 | 2.74 | 3.43 | 4.12 | |
| Aperture area | m2 | 1.01 | 1.51 | 2.01 | 2.51 | 3.02 | |
| Dimensions (L x W x H) | mm | 1286x2005x1365 | 1686x2005x1365 | 2086x2005x1365 | 2486x2005x1365 | 2886x2005x1365 | |
| Water tank | Tank dimensions | mm | φ480x1165 | φ480x1560 | φ480x1964 | φ480x2364 | φ480x2764 |
| Tank package dimensions | mm | 1375x575x555 | 1775x575x555 | 2175x575x555 | 2575x575x555 | 2975x575x555 | |
| Weight | kg | 34 | 44 | 54 | 64 | 74 | |
| Inner tank | Material |
|
Stainless Steel SUS304-2B | ||||
| Diameter / thickness | mm | φ385 / 1.2 | |||||
| Outer tank | Material |
|
White painted steel | ||||
| Diameter / thickness | mm | φ480 / 0.4 | |||||
| Side cover |
|
Blue painted steel | |||||
| Insulation | Material / thickness | mm | Polyurethane / 47.5 | ||||
| Tube | Number | pcs | 10 | 15 | 20 | 25 | 30 |
| Type |
|
φ58 x 1800 mm vacuum tube with thickness of 2.2mm & heat pipe | |||||
| Tube package dimensions | mm | 1970 x 330 x 165 | |||||
| Bracket | Material |
|
Aluminum alloy | ||||
| Colour |
|
Blue | |||||
| Inclination | degree | 30 degree for flat roof installation | |||||
| Weight | kg | 7 | 8 | 11 | 12 | 13 | |
| Other parts | TV valva Temp./ Pressure | °C/Mpa | 85 / 0.6 | ||||
| Electric heating | W | Optional/1500w 220V 50Hz | |||||
| DIN CERTCO registration number |
|
011-7S2715 A | |||||
| Loading Qty | Qty in 20GP/40HC |
|
44/104 | 36/80 | 28/64 | 24/52 | 16/48 |
Advantages and benefits
- Cost-effective solar water heating solution
- Long operating life time over 10-15 years
- Low cost in maintenance and repair requirements.
- Short payback period of 3-4 years
- Higher energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere
- High-quality stainless steel in the inner tank to continuously maintain a good water quality.
- the heat pipe ensures that the solar water heater could also be applied in the cold areas, with temperature of -15℃ or even -20 ℃.

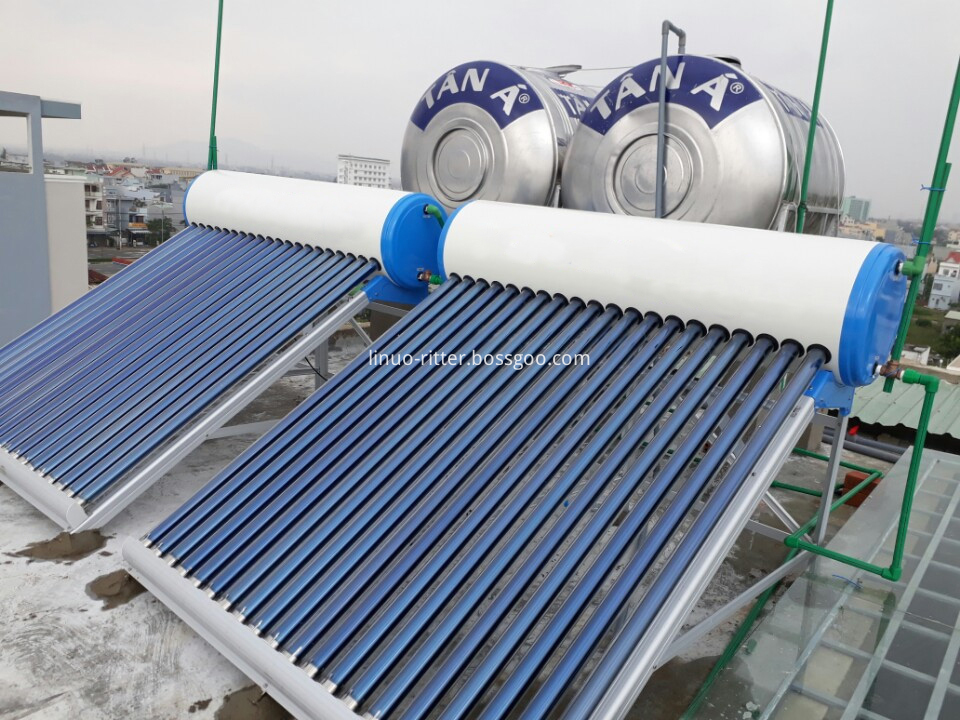

Compact type, thermosiphon solar water heater
European Solar Keymark certified,
OEM manufacturing, with annual production capacity of 4 million sets.
