Basic Info
Model No.: LP ECO SUS Series 30 degree
Max. Capacity: >200L
Structure: Compact Type
Pressure: Unpressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: CE, ISO9001, Other
Additional Info
Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment
Productivity: 300000 sets anually
Brand: Linuo Ritter International
Transportation: Ocean
Place of Origin: China
Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001
HS Code: 84191910
Port: Qingdao
Product Description

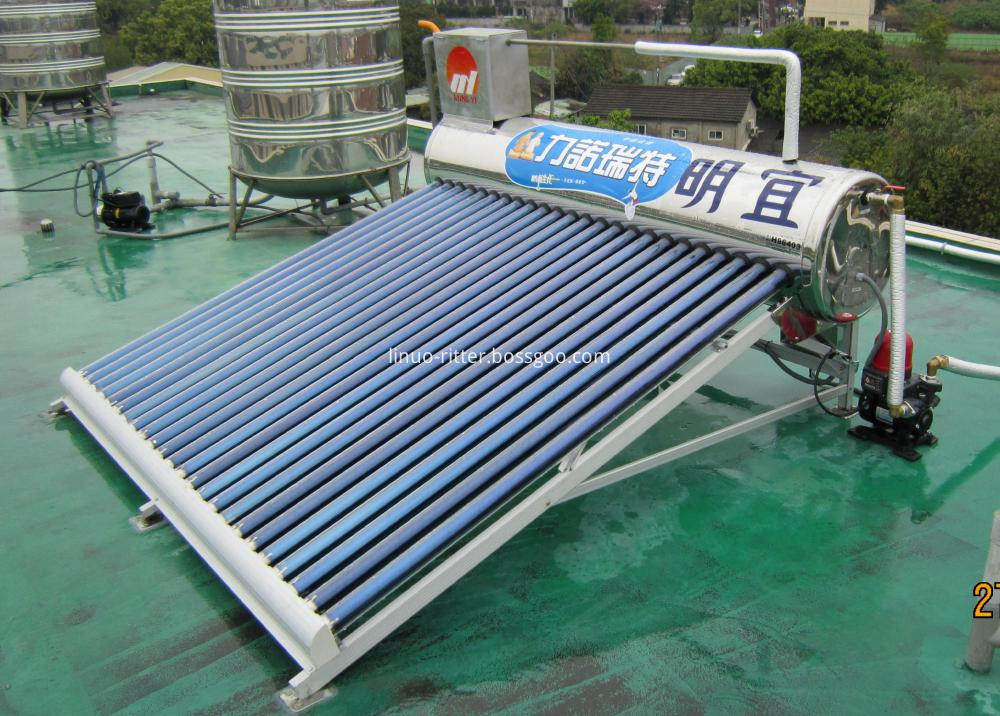

LP ECO SUS Series 30 degree
for domestic water heating, available with
100, 200 – 300L tank.
Scope of delivery
-Tank
-Aluminum brackets
-Evacuated tubes
Installation types
- Flat roof, pitched roof
Advantages and benefits
- Cost effective solar water heating solution
- Long operating life time over 10 years
- Low cost in maintenance and repair requirements.
- Short amortization rate
- Economic customized solar water heating solution
Performance characteristics
- Higher energy yield and low heat loss due to the high vacuum of the
evacuated tubes and PU insulation harmless to ozonosphere
- High-quality stainless steel in the inner tank to continuously maintain
a good water quality.
- Stainless steel inner and outer tank, highest water tank quality for coastal areas
| Series | 100L | 150L | 200L | 250L | 300L | ||
| Series number |
|
LPE-100L(30) | LPE-150L(30) | LPE-200L(30) | LPE-250L(30) | LPE-300L(30) | |
|
|
Rated operating pressure | Mpa | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 |
| Gross surface area | m2 | 1.33 | 2.01 | 2.69 | 3.37 | 4.06 | |
| Aperture area | m2 | 0.92 | 1.37 | 1.62 | 2.26 | 2.7 | |
| Dimensions (L x W x H) | mm | 990x1976x1342 | 1370x1976x1342 | 1750x1976x1342 | 2130x1976x1342 | 2510x1976x1342 | |
| Water tank | Tank dimensions | mm | φ450×990 | φ450×1370 | φ450×1750 | φ450×2130 | φ450×2510 |
| Tank package dimensions | mm | 1060x550x490 | 1440x550x490 | 1820x550x490 | 2200x550x490 | 2580x550x490 | |
| Weight | kg | 16 | 20 | 24 | 29 | 34 | |
| Inner tank | Material |
|
Food Grade Stainless Steel SUS304-2B | ||||
| Diameter / thickness | mm | φ350 / 0.4 | |||||
| Outer tank | Material |
|
Stainless Steel SUS304 | ||||
| Diameter / thickness | mm | φ450 / 0.4 | |||||
| Side cover |
|
Stainless Steel SUS304 | |||||
| Insulation | Material / thickness | mm | Polyurethane / 50 | ||||
| Tube | Number | pcs | 10 | 15 | 20 | 25 | 30 |
| Type |
|
φ58 x 1800 mm vacuum tube | |||||
| Tube package dimensions | mm | 1870 x 330 x 165 | |||||
| Bracket | Material |
|
Aluminum alloy | ||||
| Colour |
|
Silver white | |||||
| Inclination | degree | 42° | |||||
| Weight | kg | 5.5 | 6.5 | 8 | 10 | 11 | |
| Other parts | Electric heating |
|
No | ||||
| Loading Qty | Qty in 40HC |
|
153 | 112 | 89 | 74 | 60 |
|
Stainless Steel SUS304
|
