Automatic controller for solar water heater

Basic Info

Model No.: DJ07

Pressure: Unpressurized

Certification: ISO9001

Additional Info

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: ISO9001,ISO14001,OHSAS18001

HS Code: 84199010

Port: Qingdao

Product Description

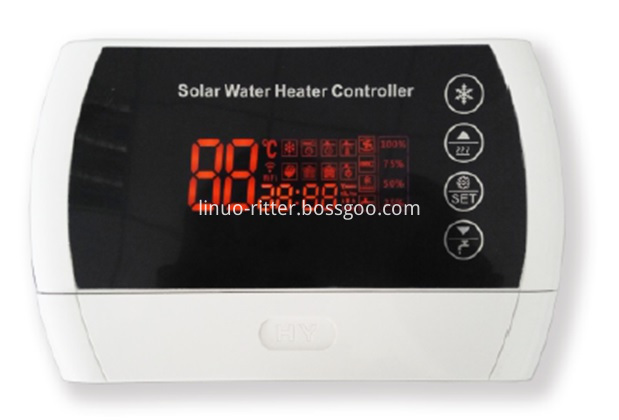

The DJ07 intelligent controller can realize the automatic working of non-pressurized compact solar water heater. It has functions of water temperature displaying, water level displaying, automatic water filling, automatic water heating, and heating & filling on customized requirements. In addition, it has protection modes to protect solar water heater from leakage, low water pressure and low ambient temperature.

Working Voltage:                                      85-265VAC/ 50Hz
Operating Ambient Temperature Range       0°C~50°C
No Load Power:                                       4W
Temperature Displaying Range:                 0~99°C
Temperature Measuring Accuracy:             ±2°C
Water Level Displaying:                            25    50    75    100
Electromagnetic Valve:                    DC 12V    Working Pressure: 0.02Mpa~0.8Mpa
Low-Pressurized Valve is Optional: 0.005Mpa~0.5Mp, for water tower
Outline Size:                           210x127x35mm
Leakage Initiating Current:              10 mA 0.1 s
Backup Electrical Heater:                       ≦2500W
Booster/Circulation Pump Power:            ≦500W
Electrical Heating Belt:                     ≦500W
Protection level:                        IP20

Controller package includes controller board with plug, sensor, and magnetic valve.

Please kindly contact us for detailed manual for reference.
