Heat pipe pressurized solar water heater 150L

Basic Info

Model No.: HP420-150L

Max. Capacity: 100-200L

Structure: Compact Type

Pressure: Pressurized

Interior Material: Stainless Steel

Collector Components: Glass Vacuum Tube

Certification: CE, ISO9001, CCC

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 300000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

Pressurized water tank ensures high comfort when customer uses hot water, the water flow and water pressure is much higher than compact non-pressurized solar water heater, customer will feel comfortable when he enjoys the hot water showering.

The selective coating on the inner cover of the vacuum tubes converts solar energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapor which rises to the condenser. Then the heat passes through the heat exchanger, the water inside of water tank is being heated, and the vapor becomes liquid, returning to the bottom of the heat pipe. This transference of heat creates a continuous circulation as long as the heat pipe vacuum tube collector is heated by sun.

Heat is transferred by liquid to the water tank and heat the water efficiently. In addition, heat pipe vacuum tubes is highly freezing resistance, which ensures higher efficiency in cold areas.

Scope of delivery
-Tank
-Aluminum brackets
-Heat pipe evacuated tubes

Installation types

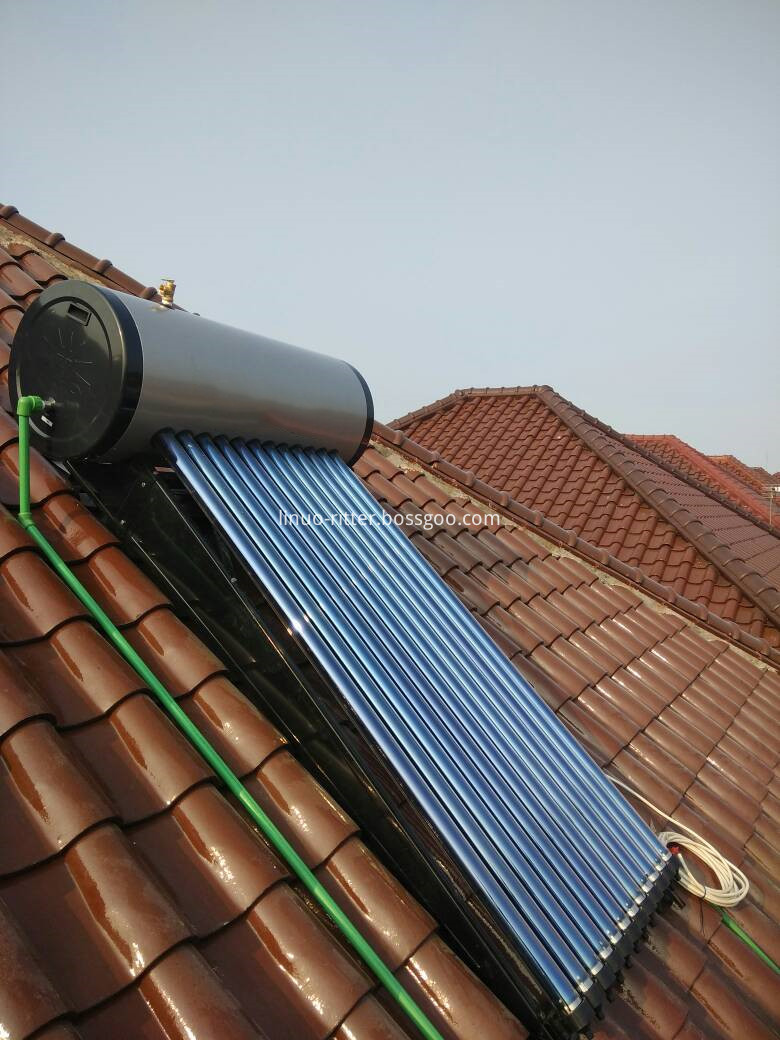

- Flat roof, pitched roof, min. inclination of 15 degree

Advantages and benefits
Easy installation and low maintenance cost of heat pipes and vacuum tubes,

High-quality stainless steel for the inner tank to continuously maintain a good water quality.

Stable operating without tube scaling or pipe explosion risk.

Fast system starting, high energy yield and low heat loss.

Strong capability of anti-freezing that is available for applications in low temperature area.

Pressurized system operating which is suitable for different installation methods.

Series: HP420-150L

Water tank capacity: 150L

Rated operating pressure: 0.06 Mpa

Gross surface area: 1.56m2

Aperture area: 1.21m2

Dimensions (L x W x H): 1235x1875x1390mm

Water tank dimensions: φ500 x 1220  mm

Tank package dimensions: 1380x575x555mm

Water tank Weight: 32kg

Inner tank Material: Stainless steel SUS304-2B

Inner tank Diameter / thickness: 420 / 1.2 mm

Outer tank Material: White painted steel

Outer tank Diameter / thickness: 500 / 0.4 mm

Side cover Color: Blue

Insulation Material / thickness: Polyurethane / 40 mm

Tube Number: 12pcs

Tube Type: φ58 x 1800 mm three-target vacuum tube and heat pipes

Tube package dimensions: 1970 x 330 x 165  mm, 10 pcs in one carton.

Bracket Material: Aluminum alloy or flexible painted galvanized steel

Bracket Colour: Silver white or blue

Bracket Inclination: 30 degree

Bracket Weight: 6kg

TP valve: 85 / 0.6 °C/Mpa

Other parts: Electric heating rod, magnesium rod are included

Customized products are avaliable on request, please contact us for details.
