Non-pressurized solar water heater 300L

Basic Info

Model No.: LP-300L(30)

Max. Capacity: Other

Structure: Compact Type

Pressure: Unpressurized

Interior Material: Stainless Steel

Collector Components: Glass Vacuum Tube

Certification: CE, ISO9001, Other

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 300000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

HS Code: 84191910

Port: Qingdao,Ningbo

Product Description

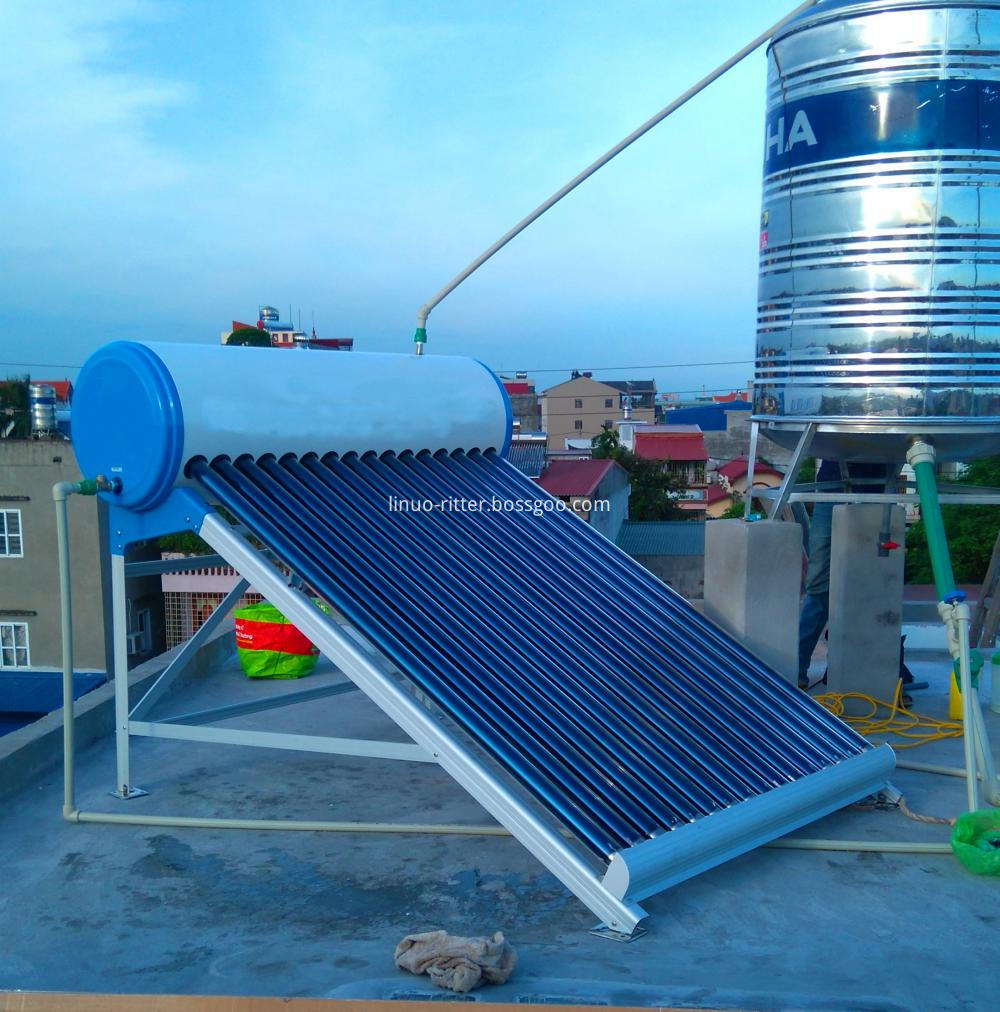

Solar water heating system 300L for household application.
- High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere

- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

- Products have been certified by Europe Solar Keymark certification.

- Other capacity and vacuum tubes numbers are available on request.

Series number: LP-300L(30)

Water tank capacity: 300L

Rated operating pressure: 0.06 Mpa

Gross surface area: 4.42 m2

Aperture area: 2.7m2

Dimensions (L x W x H): 2713x1976x1342mm

Water tank dimensions: φ472×2713mm

Tank package dimensions: 2775x575x555mm

Water tank Weight: 40kg

Inner tank Material: Stainless steel SUS304-2B

Inner tank Diameter / thickness: 380 / 0.5 mm

Outer tank Material: White painted steel

Outer tank Diameter / thickness: 472 / 0.4 mm

Side cover Color: Blue

Insulation Material / thickness: Polyurethane / 45 mm

Tube Number: 30pcs

Tube Type: φ58 x 1800 mm three-target vacuum tube

Tube package dimensions: 1870 x 330 x 165  mm, 10 pcs in one carton.

Bracket Material: Aluminum alloy

Bracket Colour: Silver white

Bracket Inclination: 30 degree

Bracket Weight:11.5kg

Other parts: Electric heating provision hole
