non pressurzied solar warter heater

Basic Info

Model No.: 100L

Additional Info

Productivity: 500000 sets anually

Brand: Linuo Ritter International

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

HS Code: 84191910

Product Description

Working principle:

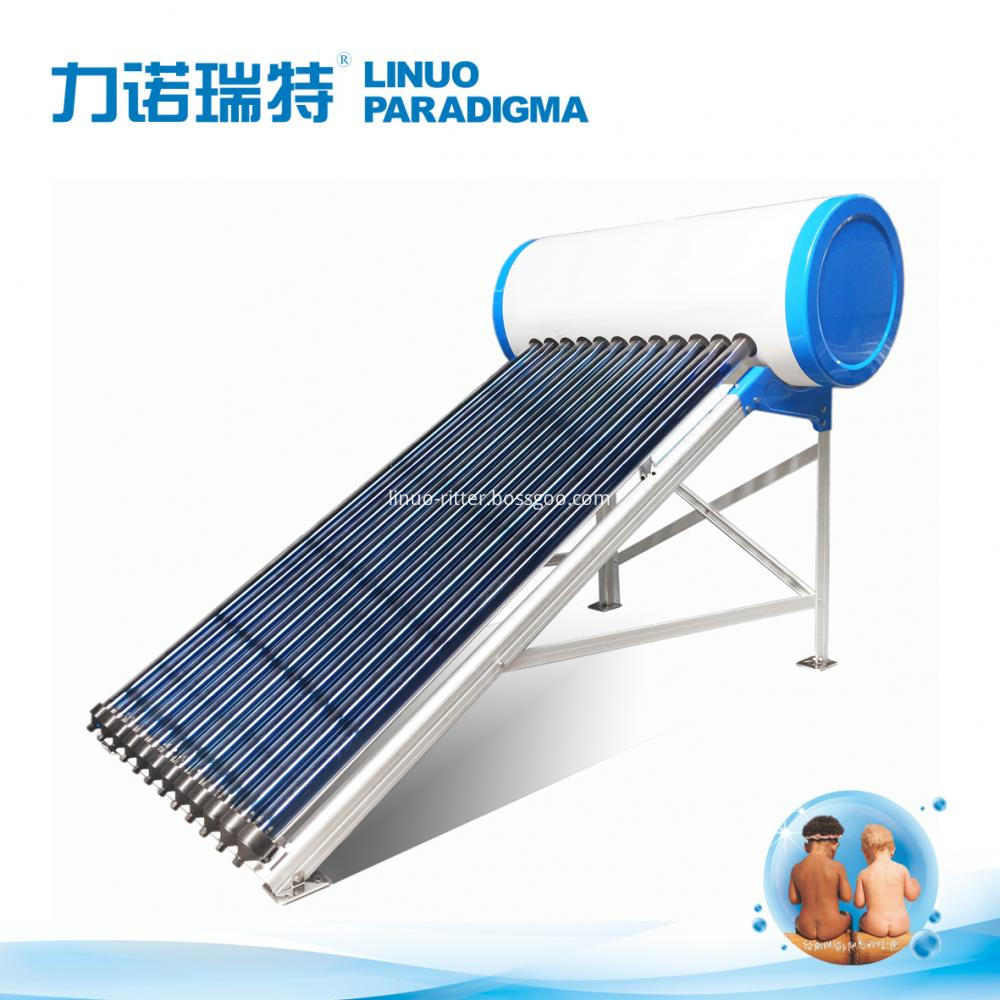

Non-pressure solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required.

They are simple, economic and practical.
As the specific gravity of hot water and cold water are different, cold water goes downward and hot water goes upward.
When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank.

While cold water in the tank goes down to the evacuated tubes
Through this circulation, the cold water in the water tank will be gradually heated.

Non-pressurized solar water heater is a cost-effective system for residential hot water application. this system is designed according to thermosiphon principle and operating with proportion difference between cold and hot water. The water heated by vacuum tubes is held in the stainless steel storage tank where the insulation preserves the heat.

The thermosiphon solar water heater uses the sun to heat the working fluid (mostly water) in the vacuum tubes. The solar collector absorbs solar radiation, and converts the sunlight to heat and transfer it to the water. The heated water naturally rises through the solar collector into the water tank where the cooler water at the bottom of the tank is forced out and descends to the bottom of the collector (thermosiphon circulation). The circulation will be interrupted when there is no solar radiation.

LP ECO SUS Series 30 degree

for domestic water heating, available with 100, 200 – 300L tank.

Scope of delivery
-Tank
-Aluminum brackets
-Evacuated tubes

Installation types
- Flat roof, pitched roof

Advantages and benefits
- Cost effective solar water heating solution
- Long operating life time over 10 years

- Low cost in maintenance and repair requirements.

- Short amortization rate

- Economic customized solar water heating solution

Performance characteristics
- Higher energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere
- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

- Stainless steel inner and outer tank, highest water tank quality for coastal areas

Thermosiphons - non-pressurized and pressurized

Linuo Ritter International distributes thermosiphon systems manufactured by our internationally well-known manufacturing facility and top brand Linuo Paradigma, located in Jinan, China. The thermosiphon systems have been developed especially for solar water heating that can be easily installed and operated. They combine the advantages of traditional Chinese thermosiphon systems and the German high quality evacuated tube collector technology in order to provide an excellent price-performance ratio. Apart from the certificates listed below, Linuo Paradigma is also certified with the ISO 9001, 14001 and OHSAS 18001.

Application: Residential, service, industrial and public sector
